3D-printed multi-functional sinusoidal metamaterials for simultaneous vibration isolation and electricity generation

Hamzehei, R, Varnosfaderani, MA, Bodaghi, M ORCID: https://orcid.org/0000-0002-0707-944X and Wu, N, 2025. 3D-printed multi-functional sinusoidal metamaterials for simultaneous vibration isolation and electricity generation. Engineering Structures, 345 (Part A): 121496. ISSN 0141-0296

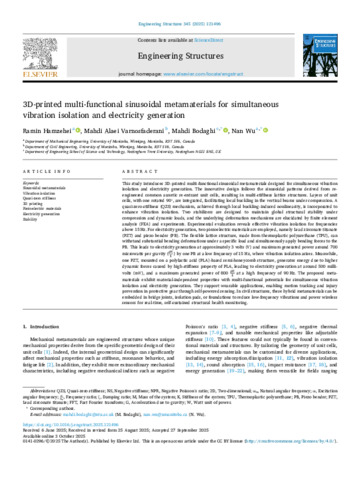

Preview

Text 2509236_Bodaghi.pdf - Published version Download (28MB) | Preview

Abstract

This study introduces 3D-printed multi-functional sinusoidal metamaterials designed for simultaneous vibration isolation and electricity generation. The innovative design follows the sinusoidal patterns derived from re-engineered common auxetic re-entrant unit cells, resulting in multi-stiffness lattice structures. Layers of unit cells, with one rotated 90°, are integrated, facilitating local buckling in the vertical beams under compression. A quasi-zero-stiffness (QZS) mechanism, achieved through local buckling-induced nonlinearity, is incorporated to enhance vibration isolation. Two stabilizers are designed to maintain global structural stability under compression and dynamic loads, and the underlying deformation mechanisms are elucidated by finite element analysis (FEA) and experiments. Experimental evaluation reveals effective vibration isolation for frequencies above 15 Hz. For electricity generation, two piezoelectric materials are employed, namely Lead zirconate titanate (PZT) and piezo bender (PB). The flexible lattice structure, made from thermoplastic polyurethane (TPU), can withstand substantial bending deformations under a specific load and simultaneously apply bending forces to the PB. This leads to electricity generation at approximately 3 volts (V) and maximum generated power around 700 microwatts per gravity by one PB at a low frequency of 15 Hz, where vibration isolation arises. Meanwhile, one PZT, mounted on a polylactic acid (PLA)-based semi-honeycomb structure, generates energy due to higher dynamic forces caused by high-stiffness property of PLA, leading to electricity generation at around 500 millivolts (mV), and a maximum generated power of 800 [microwatts per gravity] at a high frequency of 90 Hz. The proposed metamaterials exhibit material-independent properties with multi-functional potentials for simultaneous vibration isolation and electricity generation. They support wearable applications, enabling motion tracking and injury prevention in protective gear through self-powered sensing. In civil structures, these hybrid metamaterials can be embedded in bridge joints, isolation pads, or foundations to reduce low-frequency vibrations and power wireless sensors for real-time, self-sustained structural health monitoring.

Item Type:	Journal article
Publication Title:	Engineering Structures
Creators:	Hamzehei, R., Varnosfaderani, M.A., Bodaghi, M. and Wu, N.
Publisher:	Elsevier BV
Date:	15 December 2025
Volume:	345
Number:	Part A
ISSN:	0141-0296
Identifiers:	Number Type 10.1016/j.engstruct.2025.121496 DOI 2509236 Other
Rights:	©2025 The Author(s). Published by Elsevier Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/).
Divisions:	Schools > School of Science and Technology
Record created by:	Laura Borcherds
Date Added:	07 Oct 2025 16:22
Last Modified:	07 Oct 2025 16:22
URI:	https://irep.ntu.ac.uk/id/eprint/54521
