Chest drain connector

Breedon, P ORCID: https://orcid.org/0000-0002-1006-0942, Beed, M, Wright, J, Siena, L ORCID: https://orcid.org/0000-0002-6908-7365 and Meeks, J, 2023. Chest drain connector. EP4554656A1.

Preview

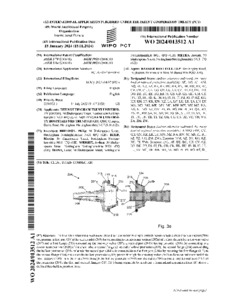

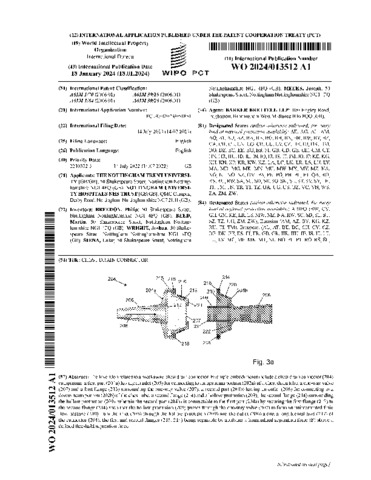

Text 2524055_Siena.pdf - Post-print Download (1MB) | Preview

Abstract

The invention relates to a breakaway chest drain connector. Example embodiments include a chest drain connector (204) comprising: a first part (204a) having an inlet (205) for connecting to an upstream portion (202a) of a chest drain tube, a one-way valve (207) and a first flange (213) surrounding the one-way valve (207); a second part (204b) having an outlet (206) for connecting to a downstream portion (202b) of the chest tube, a second flange (214) and a hollow protrusion (209), the second flange (214) surrounding the hollow protrusion (209), wherein the second part (204b) is connectable to the first part (204a) by securing the first flange (213) to the second flange (214) such that the hollow protrusion (209) passes through the one-way valve (207) to form an uninterrupted fluid flow passage (210) from the inlet (205) through the hollow protrusion (209) and the outlet (206) along a longitudinal axis (217) of the connector (204), the first and second flanges (213, 214) being separable by applying a longitudinal separation force (F) above a defined threshold separation force.

Item Type:	Patent/Published patent application
Creators:	Breedon, P., Beed, M., Wright, J., Siena, L. and Meeks, J.
Date:	14 July 2023
Identifiers:	Number Type EP4554656A1 Patent 2524055 Other
Divisions:	Schools > School of Architecture, Design and the Built Environment Schools > School of Science and Technology
Record created by:	Jeremy Silvester
Date Added:	13 Nov 2025 11:49
Last Modified:	13 Nov 2025 11:49
Related URLs:	Publisher
URI:	https://irep.ntu.ac.uk/id/eprint/54724
